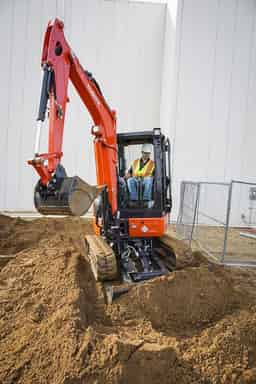

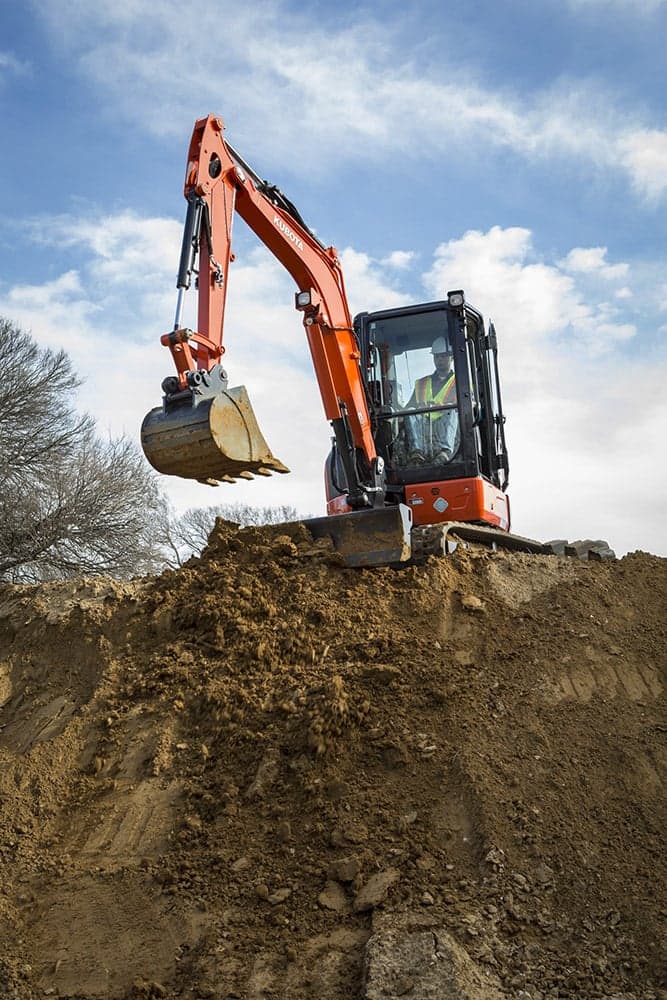

KX033-4 Angle Blade
COMPACT EXCAVATORS
Call for Pricing
With an available Extended Dipper and optional hydraulic angle blade, the Kubota KX033-4 is unlike any compact excavator you’ve ever seen before. Dig comfortably, with a spacious cab, and make sure that you can get the job done the right way, every time. Once you sit down behind the controls of the KX033-4, you’ll never want to step away. Kubota is the world’s #1 selling compact excavator for 20 years.*
*According to 2023 data from Off-Highway Research including all Kubota Group brand sales.
Special Offers
Stand Alone Financing Installment Program
Implement Stand Alone Financing
Customer instant rebate for Farmer Veteran Coalition members.
Farmer Veteran Coalition Rebate
Save Up to $9,000 or Pay 0% A.P.R. For Up to 36 Months With 0% Down on KX and U Series!*

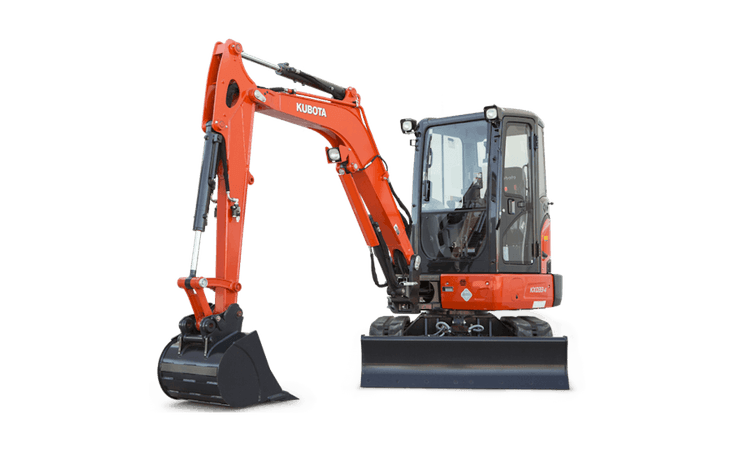

EXCAVATORS
$0 Down, 0% A.P.R. for up to 36 Months or Save up to $9,000 on Construction Equipment!
CONSTRUCTION
Specifications
Arm Breakout Force, lbs (kgf)
Auxiliary Hydraulics Flow Rate, GPM (LPM)
Blade Height, in (mm)
Blade Width, ft (mm)
Bucket Breakout Force, lbs (kgf)
Crawler Length, ft (mm)
Displacement (cu. in.)
Engine Model
Fuel Reservoir, gal (l)
Ground Contact Pressure psi, kgf (cm2)
Horsepower (gross)
Hydraulic Oil Reservoir / System, gal (l)
Min. Ground Clearance, in (mm)
Operating Weight, lbs (kg)
Overall Height, ft (mm)
Overall Length, ft (mm)
Overall Width, ft (mm)
Pump Capacity, GPM (LPM)
Traveling Speed: High, mph (kph)
Traveling Speed: Low, mph (kph)
Arm Breakout Force, lbs (kgf)
3867 (1756)
Auxiliary Hydraulics Flow Rate, GPM (LPM)
15.8 (60)
Blade Height, in (mm)
13.5 in (345), Angle Blade: 15.2in (385)
Blade Width, ft (mm)
5 ft 1 in (1550)
Bucket Breakout Force, lbs (kgf)
8138 (3694)
Crawler Length, ft (mm)
6 ft 10.6 in (2100)
Displacement (cu. in.)
100.5
Engine Model
Kubota D1703M-DI-E4
Fuel Reservoir, gal (l)
12.4 (46.9)
Ground Contact Pressure psi, kgf (cm2)
Canopy rubber/steel: 4.365 (0.307) / 4.482 (0.315), Cab rubber/steel: 4.559 (0.321) / 4.676 (0.329), Angle Blade canopy rubber/steel: 4.583 (0.322) / 4.700 (0.331) Angle Blade cab rubber/steel: 4.776 (0.336) / 4.894 (0.344)
Horsepower (gross)
23.3
Hydraulic Oil Reservoir / System, gal (l)
11.8 (44.6) / 16.1 (61)
Min. Ground Clearance, in (mm)
11.4 (290)
Operating Weight, lbs (kg)
Canopy rubber/steel: 7420 (3365) / 7616 (3454) Cab rubber/steel: 7742 (3511) / 7938 (3600), Angle Blade canopy rubber/steel: 7781 (3529) / 7978 (3618), Angle Blade cab rubber/steel: 8104 (3675) / 8300 (3764)
Overall Height, ft (mm)
8 ft 1 in (2480)
Overall Length, ft (mm)
15 ft 6 in (4730)
Overall Width, ft (mm)
5 ft 1 in (1550)
Pump Capacity, GPM (LPM)
10.5 (39.6) x 2 / 5.5 (20.9) x 1
Traveling Speed: High, mph (kph)
1.9 (3.0)
Traveling Speed: Low, mph (kph)
2.9 (4.6)
