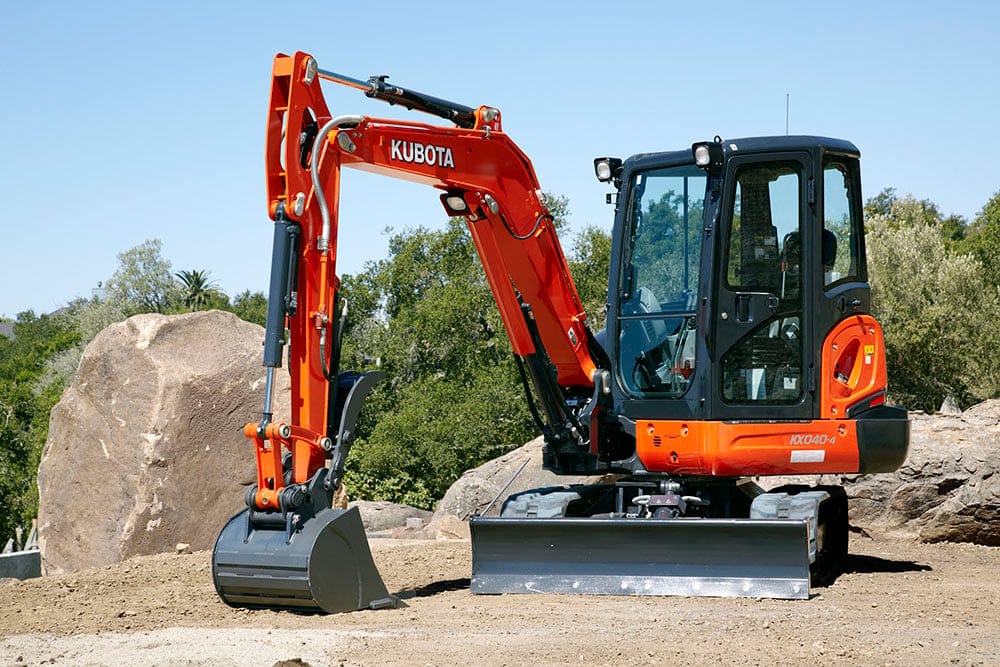

KX040-4 Angle Blade

COMPACT EXCAVATORS

Call for Pricing

Digging isn’t easy, but the Kubota KX040-4 will make it feel like it is. With 40.4 horsepower and an available cab for ultimate comfort, you’d be silly to ignore the KX040-4. Experience elite versatility, maneuverability and power like never before, and you’ll know what we mean when we talk about the Kubota difference. Kubota is the world’s #1 selling compact excavator for 20 years.*

*According to 2023 data from Off-Highway Research including all Kubota Group brand sales.

Special Offers

  • Save on Select Kubota Construction Equipment

    Save on Select Kubota Construction Equipment

    0% For 60 months OR Save Up to $12,000*

    Expires 12/31/2026
  • EXCAVATORS

    EXCAVATORS

    0% A.P.R. for up to 60 months OR save up to $12,000 on K, KX, and U Series Excavators!

    Expires 1/1/2027
  • CONSTRUCTION

    CONSTRUCTION

    $0 Down, 0% A.P.R. for up to 60 Months or Save up to $12,000 on Construction Equipment!

    Expires 1/1/2027
    KX040-4 Angle Blade

    KX040-4 Angle Blade

    Call for Pricing

    Specifications

    Arm Breakout Force, lbs (kgf)

    4112 (1865)

    Auxiliary Hydraulics Flow Rate, GPM (LPM)

    17.2 (65) / 9.8 (37)

    Blade Height, in (mm)

    13.8in (350), Angle Blade: 15.2in (385)

    Blade Width, ft (mm)

    5'6.9" (1700), Angle blade: 5'10.9" (1800)

    Bucket Breakout Force, lbs (kgf)

    9535 (4325)

    Crawler Length, ft (mm)

    7'1.6" (2175)

    Displacement (cu. in.)

    111.4

    Engine Model

    Kubota D1803-CR-TE4

    Fuel Reservoir, gal (l)

    16.9 (64)

    Ground Contact Pressure psi, kgf (cm2)

    Rubber: 4.53 (31.2) / 4.68 (32.3), Steel: 4.61 (31.8) / 4.76 (32.8), Angle Blade Rubber: 4.70 (32.4) / 4.86 (33.5), Angle Blade Steel: 4.78 (33.0) / 4.93 (34.0)

    Horsepower (gross)

    40.4

    Hydraulic Oil Reservoir / System, gal (l)

    11.1 (42) / 19.6 (74)

    Min. Ground Clearance, in (mm)

    12.99in (330)

    Operating Weight, lbs (kg)

    Rubber: 9195 (4170) / 9500 (4310) Steel: 9350 (4240) / 9655 (4380), Angle Blade Rubber: 9900 (4490) / 10210 (4630), Angle Blade Steel: 10050 (4560) / 10360 (4700)

    Overall Height, ft (mm)

    8'1.8" (2485) / 8'1.8" (2485)

    Overall Length, ft (mm)

    16'8.2" (5085)

    Overall Width, ft (mm)

    5'6.9" (1700)

    Pump Capacity, GPM (LPM)

    24.4 (92.4)

    Traveling Speed: High, mph (kph)

    1.8 (2.9)

    Traveling Speed: Low, mph (kph)

    3.1 (5.0)
