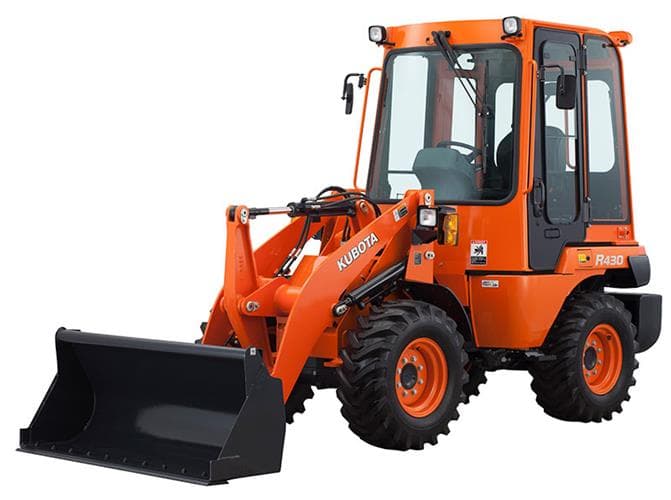

R430
WHEEL LOADERS
Call for Pricing
Compact design with impressive power allows the R430 to get the work done where larger loaders can't fit. The R430 also delivers big on comfort in every season with an available enclosed cab featuring heat and A/C.
Special Offers
Stand Alone Financing Installment Program
Implement Stand Alone Financing
Customer instant rebate for Farmer Veteran Coalition members.
Farmer Veteran Coalition Rebate
*Not Available for National Accounts or Government Customers
LOW-RATE RENTAL BUSINESSES*
$0 Down, 0% A.P.R. for up to 60 Months or Save up to $8,500 on Construction Equipment!
Construction
Save up to $5,200 or 0% A.P.R. for up to 48 Months ON R SERIES!
WHEEL LOADERS
Specifications
Angle of Rear Frame Oscillation (deg.)
Articulation Angle (deg.)
Auxiliary Hydraulic Pressure psi, kgf (cm2)
Auxiliary Hydraulics Flow Rate, GPM (LPM)
Brakes (Service)
Bucket Breakout Force, lbs (kN)
Displacement (cu. in.)
Dump Height at Fully Raised Position, ft
Emission Certification
Engine
Frame Oscillation Angle
Front/Rear Axle Traction Lock
Fuel Tank, gal (l)
Ground Clearance, in (mm)
Hinge Pin Height, ft
Hydraulic Reservoir, gal (l)
Hydraulic System, gal (l)
Lifting Capacity at Ground Level, lbs (kN)
Loader Clearance Circle, ft (mm)
Loader Raise / Lower Time, sec
Maximum Dump Angle
Operating Weight, lbs (kg)
Output (SAE J1349 net) HP/(kW)/rpm
Output (SAE J1995 gross) HP/(kW)/rpm
Overall Height, ft (mm)
Overall Length, ft (mm)
Overall Width, ft (mm)
Rated Operating Capacity, (ROC)
Reach Fully Raised at Maximum Dump Angle, ft
Standard Bucket Capacity, yd3
Standard Tire Size, in
Steering Angle
Tipping Load - Straight, lbs (kg)
Tipping Load- Full Turn, lbs (kg)
Traction Force, lbs (kgf)
Transmission Type
Traveling Speed: High, mph (kph)
Traveling Speed: Low, mph (kph)
Turning Radius Track Circle, ft (mm)
Angle of Rear Frame Oscillation (deg.)
±8
Articulation Angle (deg.)
40 (each direction)
Auxiliary Hydraulic Pressure psi, kgf (cm2)
2697 (18.6)
Auxiliary Hydraulics Flow Rate, GPM (LPM)
11.1 (42.1)
Brakes (Service)
Enclosed wet disc
Bucket Breakout Force, lbs (kN)
5215 (23.2)
Displacement (cu. in.)
11
Dump Height at Fully Raised Position, ft
7ft2in
Emission Certification
Tier 4
Engine
D1830-CR-TIE4-WL5
Frame Oscillation Angle
8 degree
Front/Rear Axle Traction Lock
Limited slip differential
Fuel Tank, gal (l)
14.3 (54)
Ground Clearance, in (mm)
11" (280)
Hinge Pin Height, ft
9ft2in
Hydraulic Reservoir, gal (l)
11.1 (42)
Hydraulic System, gal (l)
15.3 (58)
Lifting Capacity at Ground Level, lbs (kN)
3687 (16.4)
Loader Clearance Circle, ft (mm)
Loader Clearance Circle, ft (mm) 12' 1" (3695)
Loader Raise / Lower Time, sec
4.4 / 3.3
Maximum Dump Angle
44 degrees
Operating Weight, lbs (kg)
7758 (3519) / 8232 (3734)
Output (SAE J1349 net) HP/(kW)/rpm
44.5 (33.2) / 2600
Output (SAE J1995 gross) HP/(kW)/rpm
47.6 (35.5) / 2600
Overall Height, ft (mm)
8' 3" (2515)
Overall Length, ft (mm)
14' 4" (4355)
Overall Width, ft (mm)
4' 12" (1520)
Rated Operating Capacity, (ROC)
2298/2474/504/1625
Reach Fully Raised at Maximum Dump Angle, ft
2ft9in
Standard Bucket Capacity, yd3
0.5
Standard Tire Size, in
12.5/70-16-8PR
Steering Angle
40 degrees
Tipping Load - Straight, lbs (kg)
5335 (2420)/5743 (2605) / 3494 (1585)/3770 (1710)
Tipping Load- Full Turn, lbs (kg)
4596 (2085)/4949 (2245) / 3009 (1365)/3251 (1475)
Traction Force, lbs (kgf)
5485 (24.4)
Transmission Type
Hydrostatic transmission
Traveling Speed: High, mph (kph)
12.4 (20.0)
Traveling Speed: Low, mph (kph)
3.0 (4.8)
Turning Radius Track Circle, ft (mm)
10' 1" (3085)
