SSV65
SKID STEER LOADERS
Call for Pricing
Based on the 2021 Equipment Watch Awards for Highest Retained Value and 5-year residual value - Large Skid Steer Loaders

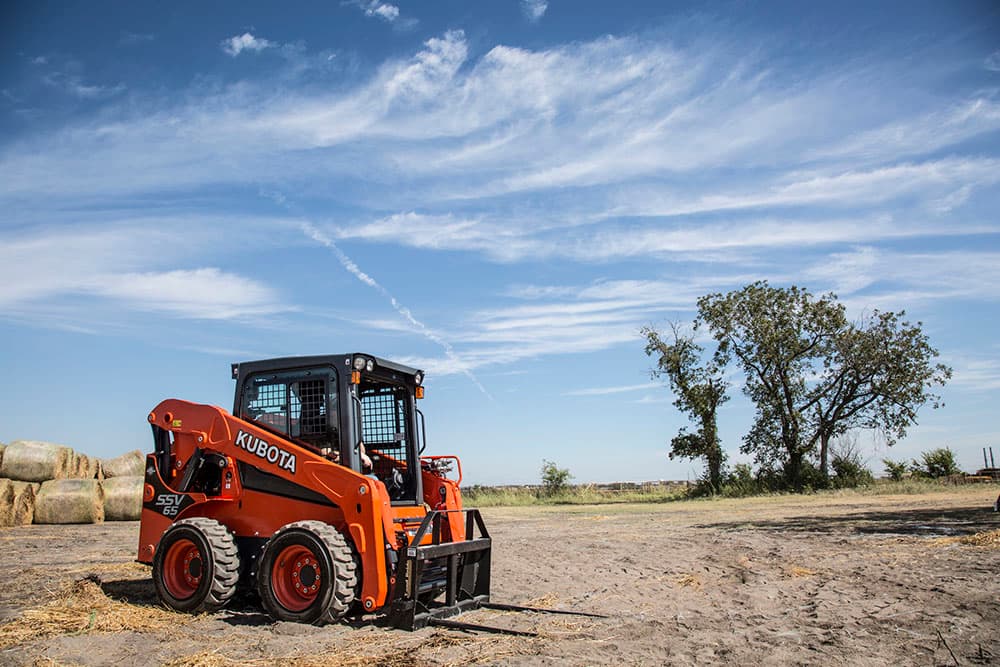

When you’re looking for the versatility of a loader, dozer or forklift without the bulk, the Kubota SSV65 gives you the tools to get the job done. Featuring the widest cab in the market with a roll up door, the SSV65 keeps you comfortable as you make use of its 64 horsepower and dominant hydraulics. No matter the job, no matter the terrain, the SSV65 makes itself at home and takes your performance to greater heights.
Special Offers
Stand Alone Financing Installment Program
Implement Stand Alone Financing
Customer instant rebate for Farmer Veteran Coalition members.
Farmer Veteran Coalition Rebate
*Not Available for National Accounts or Government Customers
LOW-RATE RENTAL BUSINESSES*
$0 Down, 0% A.P.R. for up to 60 Months or Save up to $8,500 on Construction Equipment!
Construction
Save up to $3,200 or $0 Down, 0% A.P.R. FOR UP TO 48 MONTHS ON SKID STEERS
SKID STEERS
Specifications
Aspiration
Auxiliary Hydraulics Flow Rate, GPM (LPM)
Bore Stroke, in. (mm)
Bucket Breakout Force, lbf (kgf)
Chain Size ASA#
Cylinders
Displacement (cu. in.)
Emission Certification
Engine
Fuel Tank, gal (l)
Ground Clearance, in. (mm)
Height to Hinge Pin, in. (mm)
Horsepower (gross)
Hydraulic Tank, gal (l)
Lift Arm Breakout Force, lbf (kgf)
Lift Arm Path
Loader Hydraulic Flow, GPM (LPM)
Loader Hydraulic Pressure psi, kgf (cm2)
Operating Weight, lbs (kg)
Overall Height, in. (mm)
Overall Length, in. (mm)
Overall Width, in. (mm)
Reach at Maximum Height, in. (mm)
Standard Tire Size, in.
Tipping Load, lbs (kg)
Traction Force, lbs (kg)
Traveling Speed: High. mph (kph)
Traveling Speed: Low, mph (kph)
Aspiration
Turbocharged
Auxiliary Hydraulics Flow Rate, GPM (LPM)
18.0 (68.0) / 28.0 (106.0)
Bore Stroke, in. (mm)
3.5 × 4.4
Bucket Breakout Force, lbf (kgf)
4839 (2195)
Chain Size ASA#
80
Cylinders
4
Displacement (cu. in.)
159.7
Emission Certification
Tier 4
Engine
V3307-CR-TE4
Fuel Tank, gal (l)
25.4 (96.0)
Ground Clearance, in. (mm)
7.6 (193.0)
Height to Hinge Pin, in. (mm)
121.5 (3085)
Horsepower (gross)
60.4
Hydraulic Tank, gal (l)
4.2 (16.0)
Lift Arm Breakout Force, lbf (kgf)
3858 (1750)
Lift Arm Path
Vertical
Loader Hydraulic Flow, GPM (LPM)
18.0 (68.0)
Loader Hydraulic Pressure psi, kgf (cm2)
3271 (230)
Operating Weight, lbs (kg)
7099 (3220) / 7319 (3320)
Overall Height, in. (mm)
79.9 (2029)
Overall Length, in. (mm)
Without Bucket: 106.3 (2700), With Bucket: 135.4 (3439)
Overall Width, in. (mm)
Width over Wheels: 66.5 (1689), Width with Standard Bucket: 69 (1753)
Reach at Maximum Height, in. (mm)
32.7 (831)
Standard Tire Size, in.
10-16.5-8PR
Tipping Load, lbs (kg)
3900 (1770)
Traction Force, lbs (kg)
7339 (3329)
Traveling Speed: High. mph (kph)
11.1 (17.8)
Traveling Speed: Low, mph (kph)
6.9 (11.1)
