SVL110-3
CONSTRUCTION
Call for Pricing

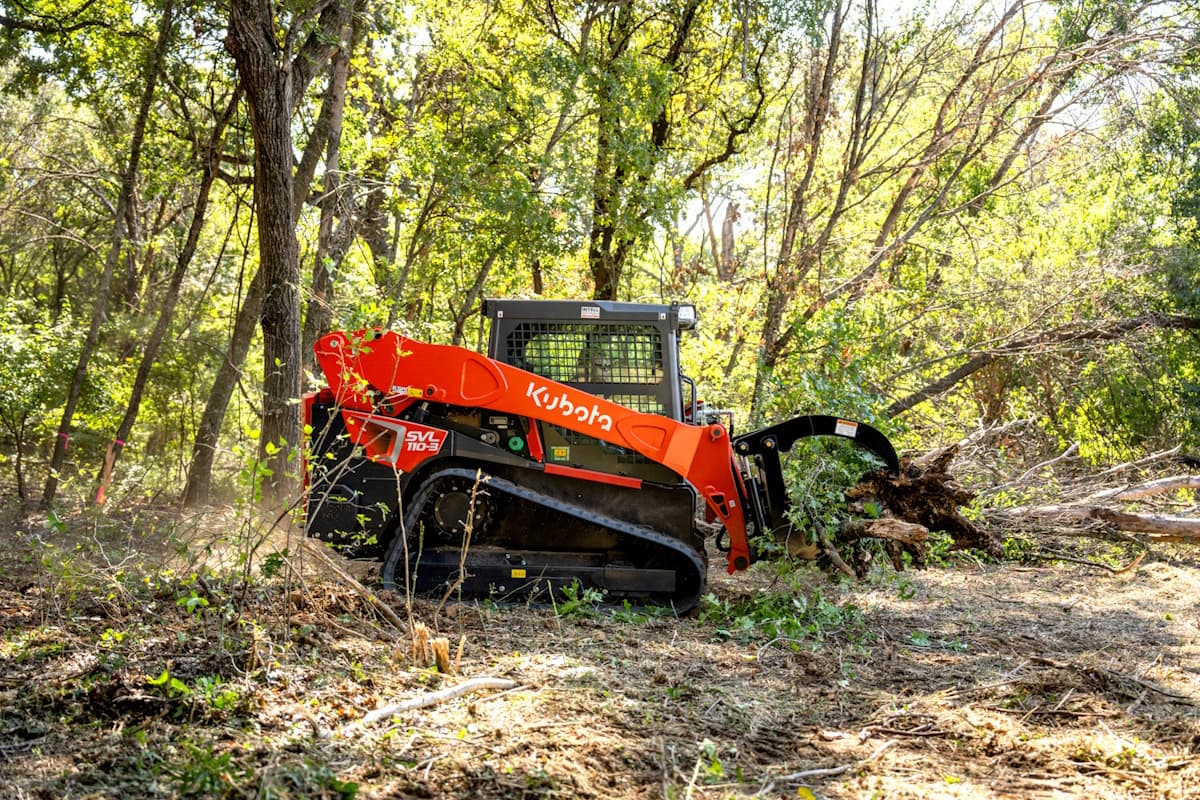

The SVL110-3 is Kubota’s newest track loader and is ready to tackle the toughest of tasks with ease. Stay comfortable all day long in the sealed one-piece cab with an air ride suspension high back seat. Adjust the machine controls through the 7” LCD screen and multifunction grips. The SVL110-3 is also packed with features like creep mode, auto downshift and an auxiliary performance system. Break new ground in the SVL110-3. #1 Selling Compact Track Loader in the USA.*
*Based on EDA/UCC Data from 01/01/2020 - 12/31/2024 for sales of new compact track loaders in the USA.
Special Offers
Save Up to $6,200 or 0% A.P.R. For Up to 36 Months With 0% Down on SVL Series!**
TRACK LOADERS
$0 Down, 0% A.P.R. for up to 36 Months or Save up to $12,000 on Construction Equipment!
CONSTRUCTION
SVL110-3
HP
Call for Pricing
Specifications
Auxiliary Hydraulic Pressure, psi (bar)
Auxiliary Hydraulics Flow Rate, GPM (LPM)
Bucket Breakout Force, lbf (kg)
Displacement cu. in. (cc)
Ground Clearance, in (mm)
Ground Contact Pressure, psi (kPa)
Ground Pressure, (psi)
Height to Hinge Pin, in (mm)
Horsepower (gross)
Lift Arm Breakout Force, lbf (kg)
Lift Arm Path
Operating Weight, lbs (kg)
Operator Station
Overall Height, in (mm)
Overall Length, in (mm)
Overall Width, in (mm)
Rated Operating Capacity (ROC), lbs (kg)
Tipping Load, lbs (kg)
Track Ground Contact Length, in. (mm)
Track Rollers (per side)
Track Width (standard/wide), in. (mm)
Traction Force, lbf (kgf)
Traveling Speed: High, mph (kph)
Traveling Speed: Low, mph (kph)
Auxiliary Hydraulic Pressure, psi (bar)
3553 (250)
Auxiliary Hydraulics Flow Rate, GPM (LPM)
45.0 (170.4)
Bucket Breakout Force, lbf (kg)
7650 (3469)
Displacement cu. in. (cc)
230 (3769)
Ground Clearance, in (mm)
10.9 (278)
Ground Contact Pressure, psi (kPa)
4.8
Ground Pressure, (psi)
4.8
Height to Hinge Pin, in (mm)
128.5 (3264)
Horsepower (gross)
112.7
Lift Arm Breakout Force, lbf (kg)
5288 (2398)
Lift Arm Path
Vertical
Operating Weight, lbs (kg)
12322 (5589)
Operator Station
Closed cab
Overall Height, in (mm)
83.1 (2112)
Overall Length, in (mm)
123.7 (3141)
Overall Width, in (mm)
77.2 (1962)
Rated Operating Capacity (ROC), lbs (kg)
3700 (1678)
Tipping Load, lbs (kg)
10571 (4795)
Track Ground Contact Length, in. (mm)
65.6 (1667)
Track Rollers (per side)
5
Track Width (standard/wide), in. (mm)
17.7 (450) / N/A
Traction Force, lbf (kgf)
13174.7 (5976)
Traveling Speed: High, mph (kph)
8.4 (13.4)
Traveling Speed: Low, mph (kph)
5.5 (8.8)
