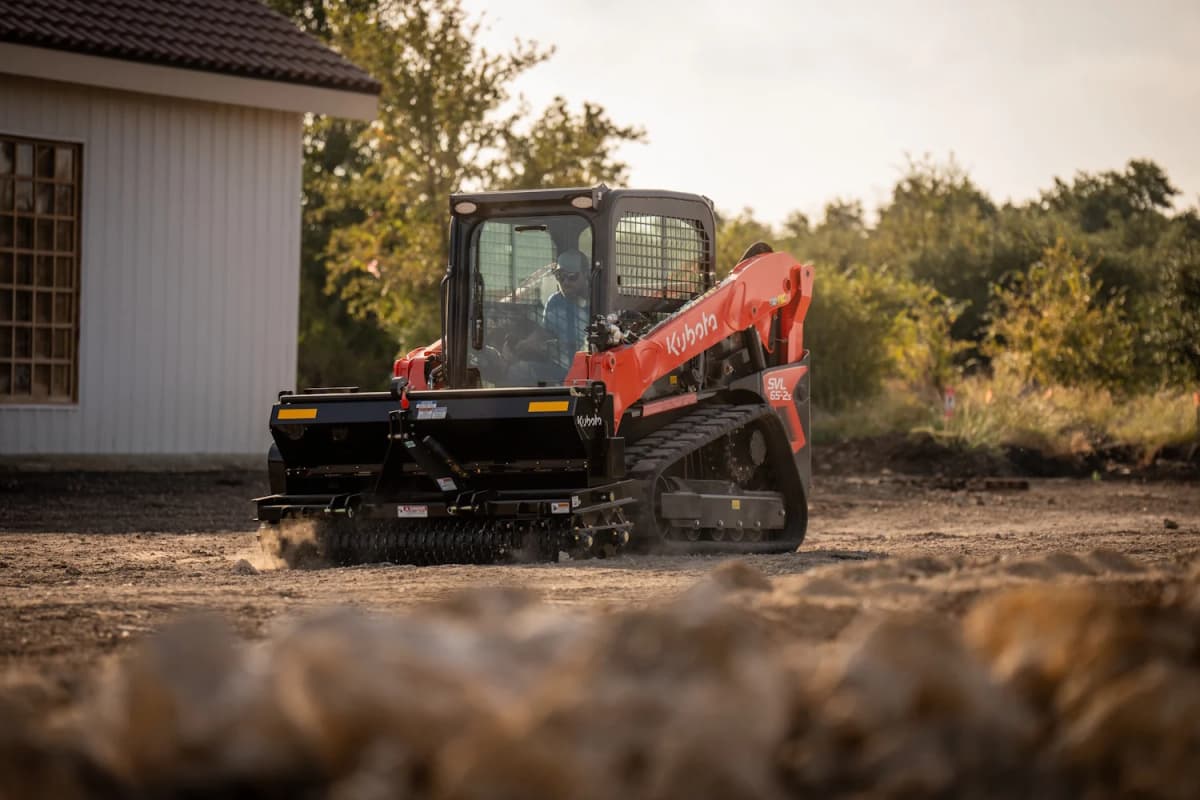

    The next generation of Kubota’s SVL65 track loader is here! The SVL65-2s will replace the popular SVL65-2. The SVL65-2s delivers the same proven specs you know and trust, now with updated operator comfort and performance features. New features that upgrade what matters most – the operator experience. #1 Selling Compact Track Loader in the USA.*

    *Based on EDA/UCC Data from 01/01/2020 – 12/31/2024 for sales of new compact track loaders in the USA.

    SVL65-2s

    SVL65-2s

    HP

    Call for Pricing

    Specifications

    Auxiliary Hydraulic Pressure, psi (bar)

    3263 (229.4)

    Auxiliary Hydraulics Flow Rate, GPM (LPM)

    17.4 (65.8) / 27.0 (102.2)

    Bucket Breakout Force, lbf (kg)

    4614 (2093)

    Displacement cu. in. (cc)

    159.6 (2615)

    Ground Clearance, in (mm)

    9.1 (233)

    Ground Contact Pressure, psi (kPa)

    Standard: 5.0 (34.5) Wide: 4.2 (30)

    Ground Pressure, (psi)

    Standard: 5.0 Wide: 4.2

    Height to Hinge Pin, in (mm)

    118.5 in (3009.9)

    Horsepower (gross)

    68.4

    Lift Arm Breakout Force, lbf (kg)

    4266 (1935)

    Lift Arm Path

    Vertical

    Operating Weight, lbs (kg)

    8135 (3690) / 8631 (3915)

    Operator Station

    Open cab / closed cab

    Overall Height, in (mm)

    79.9 (2029)

    Overall Length, in (mm)

    136.4 (3465)

    Overall Width, in (mm)

    68 (1727) / 74 (1880)

    Rated Operating Capacity (ROC), lbs (kg)

    35% Tipping Load: 2100 (953) / 50% Tipping Load: 3000 (1361)

    Tipping Load, lbs (kg)

    6000 (2722)

    Track Ground Contact Length, in. (mm)

    57.9 (1470)

    Track Rollers (per side)

    4

    Track Width (standard/wide), in. (mm)

    12.6 (320) / 15.0 (380)

    Traction Force, lbf (kgf)

    8406 (3813)

    Traveling Speed: High, mph (kph)

    7.1 (11.5)

    Traveling Speed: Low, mph (kph)

    4.9 (7.8)
