SVL75-3

CONSTRUCTION

Call for Pricing

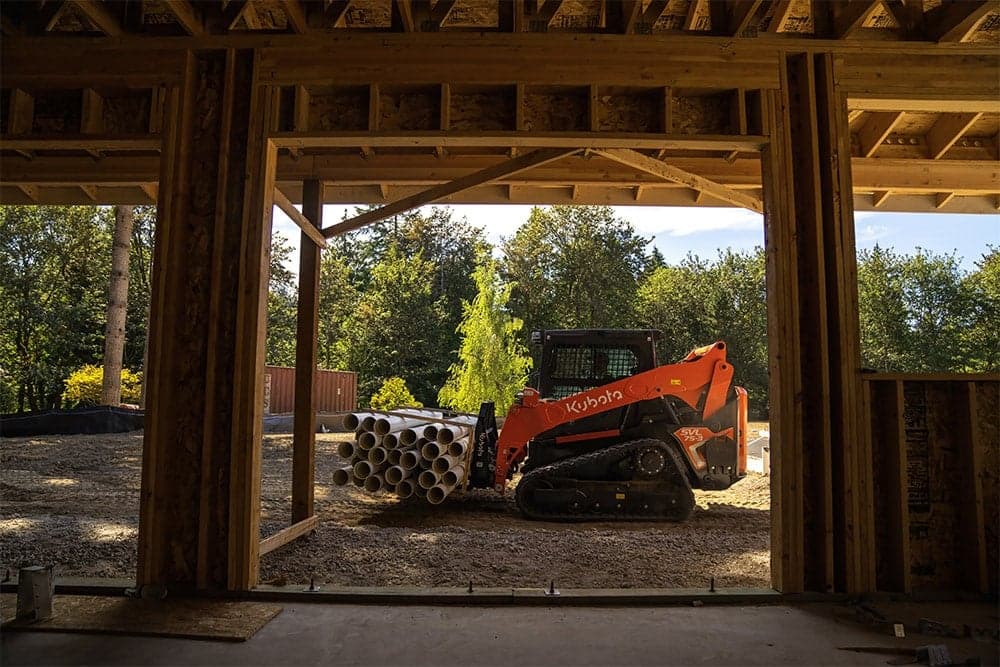

When you’re looking for comfort, practicality, and versatility, you can’t beat the experience that the Kubota SVL75-3 gives you. The SVL75-3 offers a wide range of performance, comfort and productivity features suited for whatever you throw in its way – digging, and moving materials, grading, landscaping, or hardscaping. Available as an open or closed cab, the SVL75-3’s side-screen to side-screen width of 36 inches means you’ll have plenty of room to stretch out, and a comfortable operator is a productive one. #1 Selling Compact Track Loader in the USA.*

*Based on EDA/UCC Data from 01/01/2020 - 12/31/2024 for sales of new compact track loaders in the USA.

Download

Specifications

Build

My Equipment

Shop

Find Parts

Compare

Specifications

Special Offers

  • Save on Select Kubota Construction Equipment

    Save on Select Kubota Construction Equipment

    0% For 60 months OR Save Up to $12,000*

    Expires 12/31/2026
  • TRACK LOADERS

    TRACK LOADERS

    0% A.P.R. for up to 60 months OR save up to $5,200 on SVL Series!

    Expires 1/1/2027
  • CONSTRUCTION

    CONSTRUCTION

    $0 Down, 0% A.P.R. for up to 60 Months or Save up to $12,000 on Construction Equipment!

    Expires 1/1/2027
    SVL75-3

    SVL75-3

    HP

    Call for Pricing

    Specifications

    Auxiliary Hydraulic Pressure, psi (bar)

    3185 (224.0)

    Auxiliary Hydraulics Flow Rate, GPM (LPM)

    19.2 (72.7) / 29.8 (112.8)

    Bucket Breakout Force, lbf (kg)

    6191 (2808)

    Displacement cu. in. (cc)

    203.3

    Ground Clearance, in (mm)

    11.7 (296)

    Ground Contact Pressure, psi (kPa)

    Standard: 5.8 (40) / 5.9 (40.7) Wide: 4.7/4.8

    Ground Pressure, (psi)

    Standard: 5.8/5.9 Wide: 4.7/4.8

    Height to Hinge Pin, in (mm)

    122.7 (3117)

    Horsepower (gross)

    71.6

    Lift Arm Breakout Force, lbf (kg)

    4723 (2142)

    Lift Arm Path

    Vertical

    Operating Weight, lbs (kg)

    9190 (4169) / 9420 (4273)

    Operator Station

    Open cab / closed cab

    Overall Height, in (mm)

    81.8 (2078)

    Overall Length, in (mm)

    142.1 (3609)

    Overall Width, in (mm)

    Vehicle Width Standard Track / Wide Track, in (mm): 65.9 (1675) / 69.1 (1755), Width with Bucket, in (mm): 68 (1727)

    Rated Operating Capacity (ROC), lbs (kg)

    2490 (1043)

    Tipping Load, lbs (kg)

    7112 (3226)

    Track Ground Contact Length, in. (mm)

    56.5 (1436)

    Track Rollers (per side)

    4

    Track Width (standard/wide), in. (mm)

    12.6 (320) / 15.8 (400)

    Traction Force, lbf (kgf)

    9678 (4390)

    Traveling Speed: High, mph (kph)

    8.6 (13.7)

    Traveling Speed: Low, mph (kph)

    5.6 (9.0)
