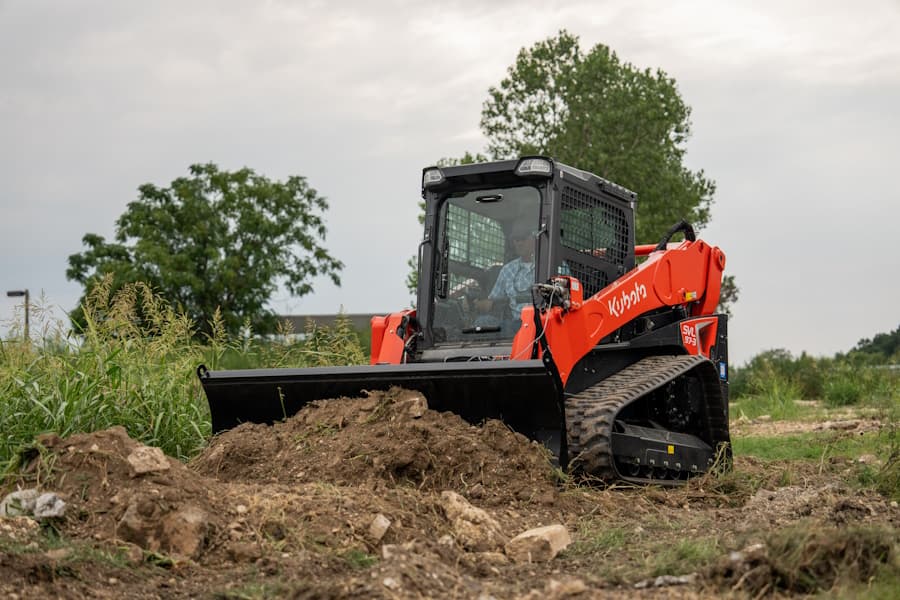

SVL97-3
TRACK LOADERS
Call for Pricing
Be the solution you’re searching for as you power through obstacles in your path and adapt to the conditions at hand in the new Kubota SVL97-3. The SVL97-3 replaces the popular SVL97-2 with a wide range of performance, comfort and productivity features. Still rated at 96.4 horsepower, the SVL97-3 is ready to move ground and tackle rough terrain in comfort and in confidence. Factor in its dominant lift capacity, breakout force and advanced hydraulic system and we think you and the SVL97-3 are going to get along nicely. Want more? How about features such as a 1-piece sealed cab, adjustable track response, auto downshift, and a host of others? A workhorse, a go-getter, a friend-- the Kubota SVL97-3. #1 Selling Compact Track Loader in the USA.*
*Based on EDA/UCC Data from 01/01/2020 - 12/31/2024 for sales of new compact track loaders in the USA.
SVL97-3
HP
Call for Pricing
Specifications
Auxiliary Hydraulic Pressure, psi (bar)
Auxiliary Hydraulics Flow Rate, GPM (LPM)
Bucket Breakout Force, lbf (kg)
Displacement cu. in. (cc)
Ground Clearance, in (mm)
Ground Contact Pressure, psi (kPa)
Ground Pressure, (psi)
Height to Hinge Pin, in (mm)
Horsepower (gross)
Lift Arm Breakout Force, lbf (kg)
Lift Arm Path
Operating Weight, lbs (kg)
Operator Station
Overall Height, in (mm)
Overall Length, in (mm)
Overall Width, in (mm)
Rated Operating Capacity (ROC), lbs (kg)
Tipping Load, lbs (kg)
Track Ground Contact Length, in. (mm)
Track Rollers (per side)
Track Width (standard/wide), in. (mm)
Traction Force, lbf (kgf)
Traveling Speed: High, mph (kph)
Traveling Speed: Low, mph (kph)
Auxiliary Hydraulic Pressure, psi (bar)
3553 (249.8)
Auxiliary Hydraulics Flow Rate, GPM (LPM)
40.0 (152)
Bucket Breakout Force, lbf (kg)
7650 (37)
Displacement cu. in. (cc)
230 (3769)
Ground Clearance, in (mm)
11 (279)
Ground Contact Pressure, psi (kPa)
4.7 / 4.8
Ground Pressure, (psi)
4.6 (0.32 bar)
Height to Hinge Pin, in (mm)
128.5 (3263.9)
Horsepower (gross)
96.4
Lift Arm Breakout Force, lbf (kg)
5288 (25)
Lift Arm Path
Vertical
Operating Weight, lbs (kg)
11676 (5296) / 11989 (5411)
Operator Station
Open cab / closed cab
Overall Height, in (mm)
83.1 (2111)
Overall Length, in (mm)
123.7 (3142)
Overall Width, in (mm)
77.2 (1961)
Rated Operating Capacity (ROC), lbs (kg)
3459 (1569)
Tipping Load, lbs (kg)
9884 (4483)
Track Ground Contact Length, in. (mm)
65.6 (1667)
Track Rollers (per side)
5
Track Width (standard/wide), in. (mm)
17.7 (450) / N/A
Traction Force, lbf (kgf)
13175 (59)
Traveling Speed: High, mph (kph)
8.4 (13.5)
Traveling Speed: Low, mph (kph)
5.5 (8.9)
