U55-5
COMPACT EXCAVATORS
Call for Pricing

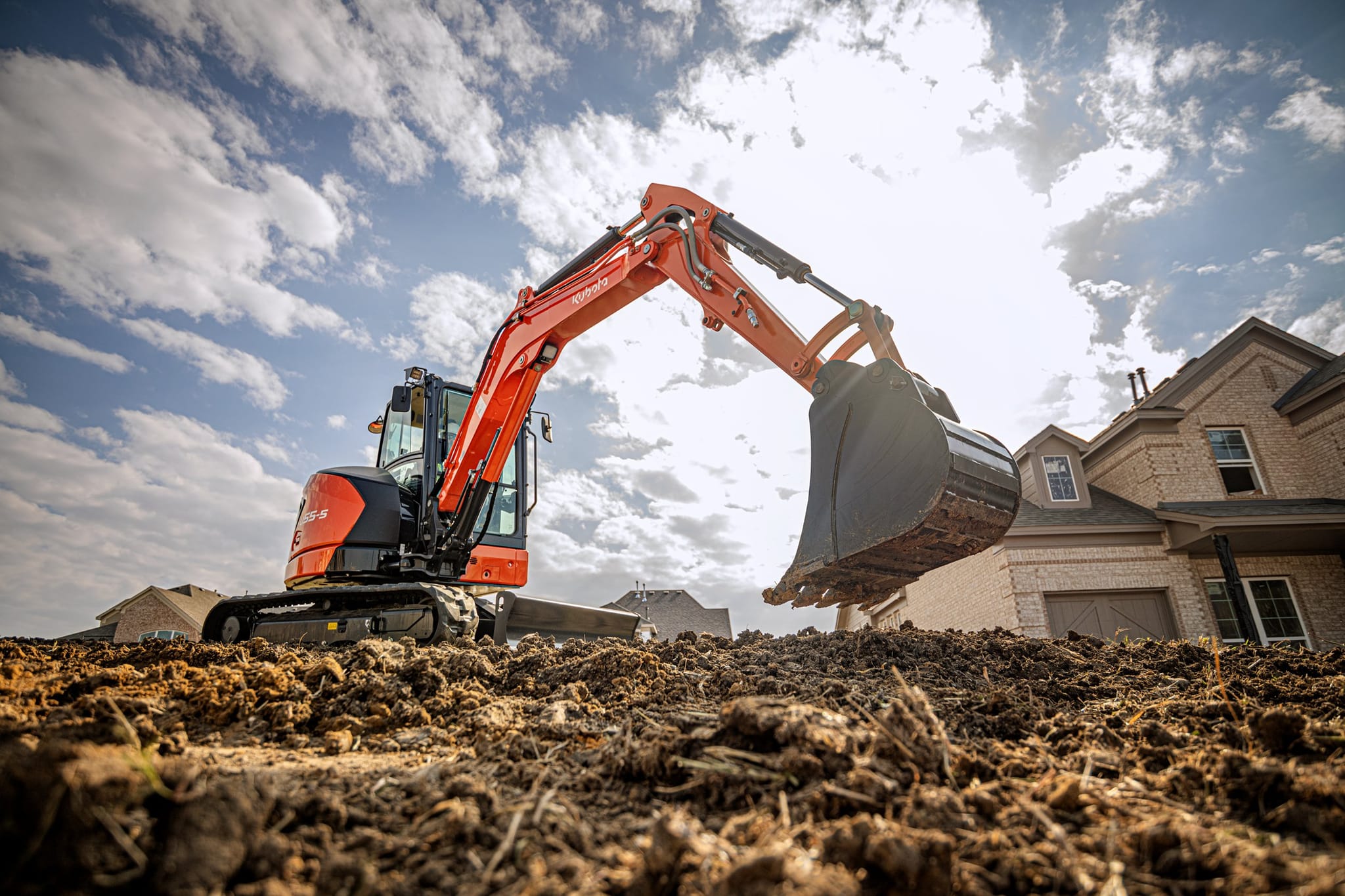

The right equipment makes all the difference, and you’ll find that difference you’re searching for with the Kubota U55-5. Advanced hydraulics, outstanding dig and dump capability and a whopping 47.6 horsepower follow your every command, letting you get more done in a day’s work and start setting your sights on the next challenge. Kubota is the world’s #1 selling compact excavator for 20 years.*
*According to 2023 data from Off-Highway Research including all Kubota Group brand sales.
Special Offers
Stand Alone Financing Installment Program
Implement Stand Alone Financing
Customer instant rebate for Farmer Veteran Coalition members.
Farmer Veteran Coalition Rebate
*Not Available for National Accounts or Government Customers
LOW-RATE RENTAL BUSINESSES*
$0 Down, 0% A.P.R. for up to 60 Months or Save up to $8,500 on Construction Equipment!
Construction
Save Up to $8,500 or Pay 0% A.P.R. For Up to 60 Months With 0% Down on KX and U Series!*
EXCAVATORS
Specifications
Arm Breakout Force, lbs (kgf)
Auxiliary Hydraulics Flow Rate, GPM (LPM)
Blade Height, in (mm)
Blade Width, ft (mm)
Bucket Breakout Force, lbs (kgf)
Crawler Length, ft (mm)
Displacement (cu. in.)
Engine Model
Fuel Reservoir, gal (l)
Ground Contact Pressure psi, kgf (cm2)
Horsepower (gross)
Hydraulic Oil Reservoir / System, gal (l)
Min. Ground Clearance, in (mm)
Operating Weight, lbs (kg)
Overall Height, ft (mm)
Overall Length, ft (mm)
Overall Width, ft (mm)
Pump Capacity, GPM (LPM)
Traveling Speed: High, mph (kph)
Traveling Speed: Low, mph (kph)
Arm Breakout Force, lbs (kgf)
5869 (2662)
Auxiliary Hydraulics Flow Rate, GPM (LPM)
19.8 (75) / 9.8 (37)
Blade Height, in (mm)
16.1in (410), Angle Blade (in/mm): 16.7in (425)
Blade Width, ft (mm)
6ft 5.2in (1960)
Bucket Breakout Force, lbs (kgf)
10172 (4614)
Crawler Length, ft (mm)
8ft 2in (2500)
Displacement (cu. in.)
159.6
Engine Model
Kubota V2607-CR-E5
Fuel Reservoir, gal (l)
17.4 (66)
Ground Contact Pressure psi, kgf (cm2)
Rubber: 4.6 (0.32) / 4.6 (0.33), Angle blade rubber: 4.7 (0.33) / 4.8 (0.34), Angle blade steel: 4.7 (0.33) / 4.7 (0.33)
Horsepower (gross)
47.6
Hydraulic Oil Reservoir / System, gal (l)
11.1 (41.9) / 20.3 (77)
Min. Ground Clearance, in (mm)
12.2in (310)
Operating Weight, lbs (kg)
Rubber: 12247 (5555) / 12456 (5650), Angle blade rubber: 12721 (5770) / 12930 (5865), Angle blade steel: 13007 (5900) / 13217 (5995)
Overall Height, ft (mm)
8ft in (2550)
Overall Length, ft (mm)
17ft 1in (5435)
Overall Width, ft (mm)
6ft 5in (1960)
Pump Capacity, GPM (LPM)
14.8 (56.1) Variable x 2 / 9.8 (37.0) Gear x 1
Traveling Speed: High, mph (kph)
3.0 (4.8)
Traveling Speed: Low, mph (kph)
1.7 (2.8)
